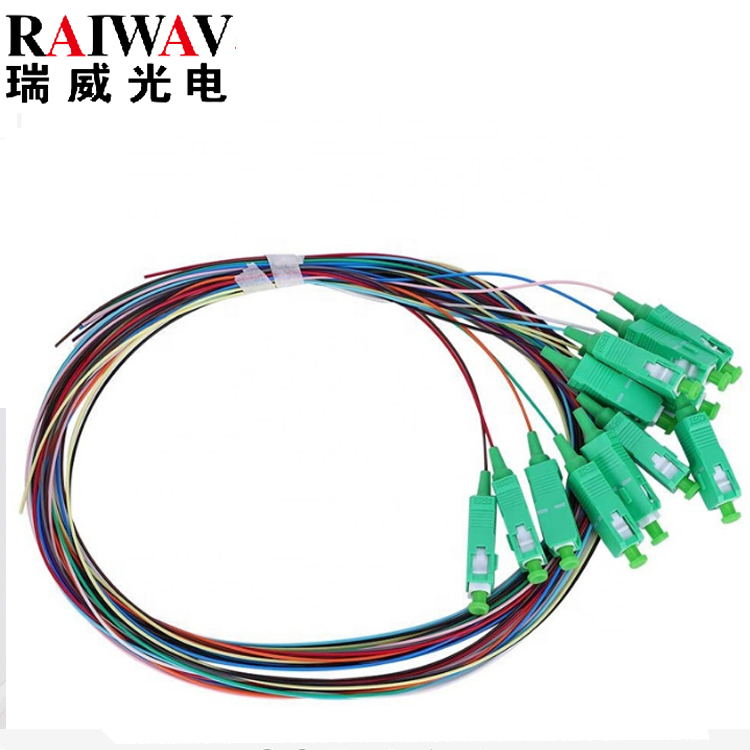

12 CORES BUNDLED SINGLE MODE FIBER OPTIC PIGTAILS COLOR CODED STRAND SC APC 0.9MM

Pigtails are used for splice applications when terminating outside plant cable. Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
cable type:
Jacket:
legth:
Cable Diameter:
Ferrule end face:
Availability:
Quantity:
  • RW- SCAPC-Pigtail
  • RAIWAV
  • RW-SC/APC

Quick Details:
Place of Origin:Jiangsu, China (Mainland)

Brand Name:RAIWAV

Model Number: 12 core SC pigtail

Mode:Single Mode

Ferrule end face:PC/UPC/APC

Fiber counts:Simplex/Duplex

Jacket:PVC/LSZH

Cable length:1/1.5/3/5/10/20m or customized

Certification:ISO9001/14001/OHSAS18001/TLC

Company Type:Factory

Performance

unit

FC, SC, LC

ST, MU

SM

MM

SM

MM

PC/UPC

APC

PC

PC/UPC

PC

Fiber Type


G652D、G657A

50/125、65.2/125

G652D、G657A

50/125、65.2/125

Insertion  loss

dB

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

Return  loss

dB

≥ 50

≥ 60

≥ 30

≥ 50

≥ 30

Wavelength

nm

1310, 1550

1300(OM1)850

1310, 1550

1300(OM1)850

Interchangeability

dB

≤ 0.2

≤ 0.2

operating temperature

-40~75

-40~75

Storage temperature

-45~85

-45~85
