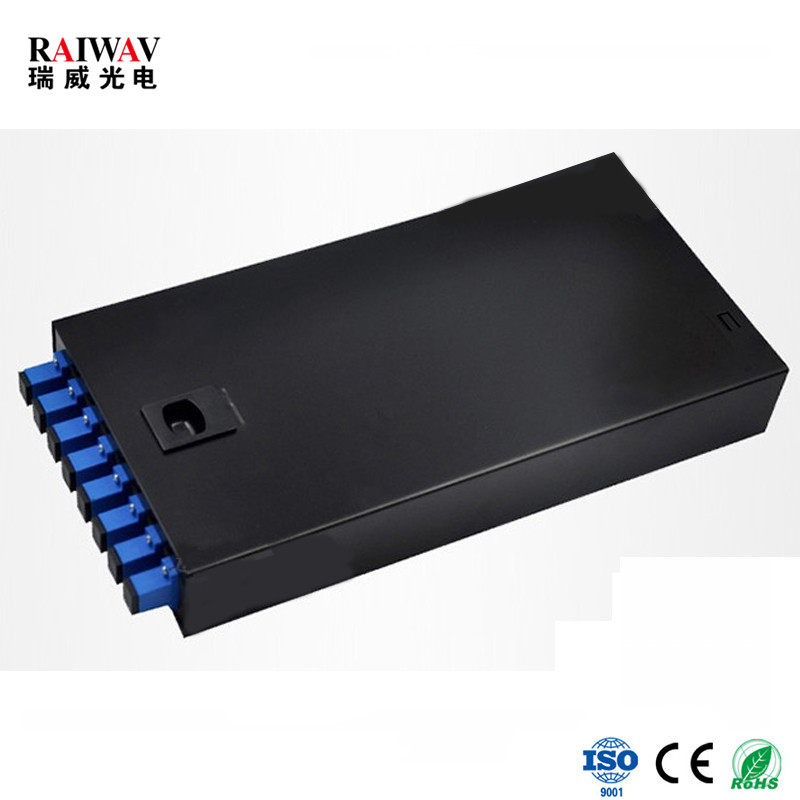

8 Port Metal Optic Fiber Terminal Box

Fiber optic patch panel is an integrated unit for fiber management, We offer wall mounted fiber optic patch panel and rack mounted fiber optic patch panels, these equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection.

core:
Connector Type:
Quantity:
  • RW-TB-8SC
  • RAIWAV
  • RAIWAV-TB-8SC

High quality 8 port Indoor ST FC LC SC mini metal optic fiber terminal box



 Description

       Foclink FTTH fiber optic distribution is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It has 8 input ports and 8 output ports on the bottom and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.



Technical Character:

     Made of cold-rolling steel, static spreading-plastic, color and lustre is uniform, elegant appearance, easy for operation.

     The box has a pothook, which is convenient to install and dismantle.

     The box is of unique structure, reasonable layout, and has adequate room for operation.

     Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are tightly.

     The indoor type is of excellent seal performance, which could prevent water from entering effectively.


Features:

   The material is engineering plastic of high quality and it can be used for indoor,outdoor.
Rugged and reliable structure.
   It is applicable for wall-mounted and pole-mounted.
   Fiber cables both can entry from the bottom of the box.
   Supports up to 2pcs 1×8 splitter modules or 1pc 1×16 splitter modules.
   Compliant with fast-connector and FTTH cable
   Available to meet the cut connection function for the live cable.


Application

  Outdoor environment,IP55
  Wall mount; pole mount
  Comprehensive computer network engineering.
  Intelligent Building Cabling
  Fiber To The Home (FTTH)
  Residential Intelligent Network System.
  Campus Network, Enterprise


Specifications:

   Environment temperature: -25℃ ~+40℃

   Insulation resistance: >2*104MΩ

    Humidity:≤85%(at 30℃)

   Voltage Strength: 15KDC/1min, no arc-over or breakdown

    Air Pressure:70kPa - 106kPa
