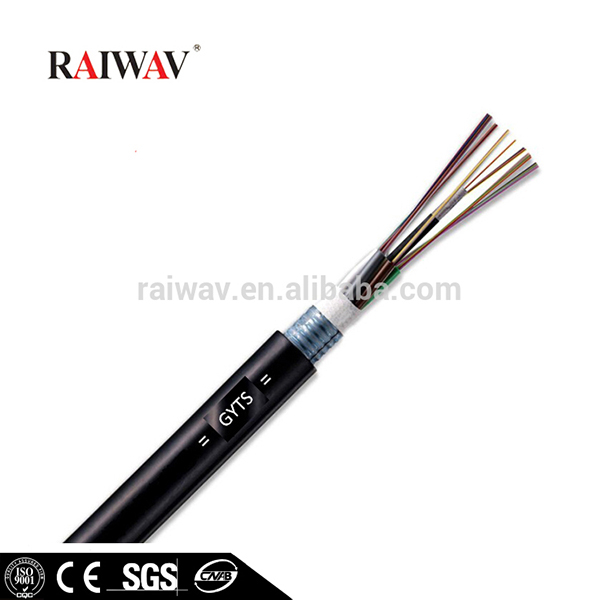

Cable Manufacture G652D/G657A Single Mode GYTS Armored Duct Fiber Optic Cable

Availability:
Quantity:
sharethis sharing button

2

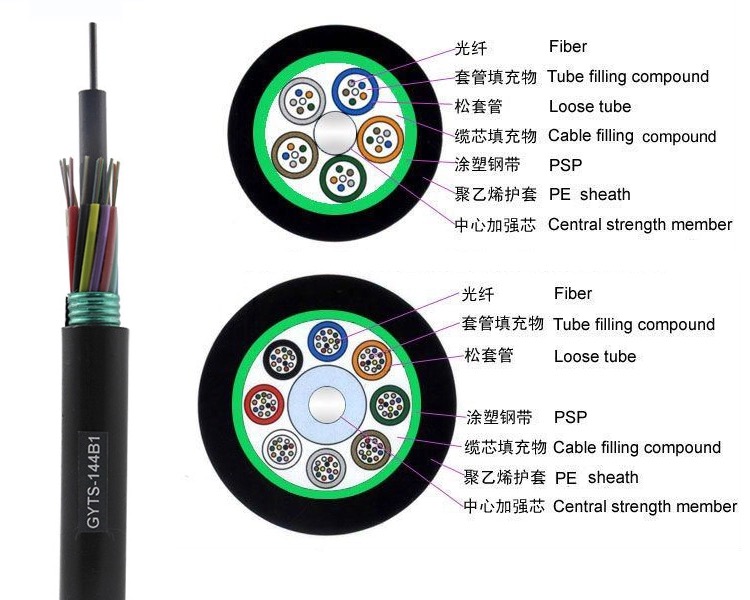

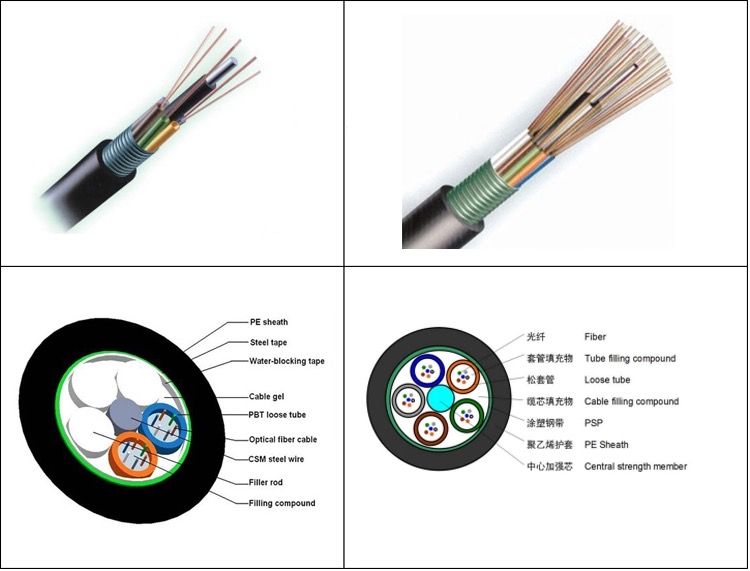

The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire,sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member .Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.


3

4




5

6

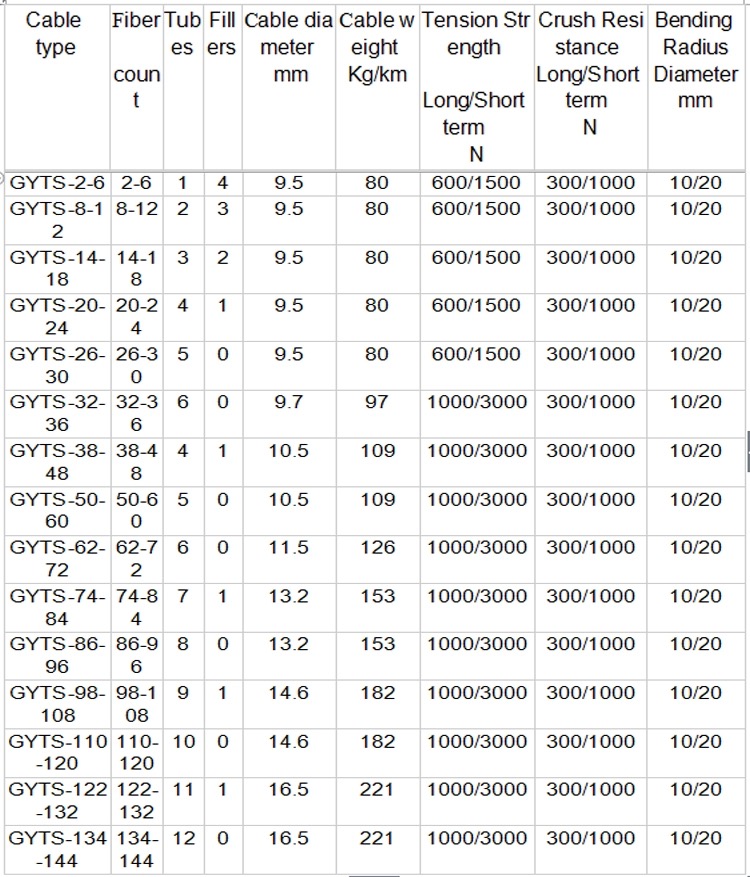

Technical parameters

7

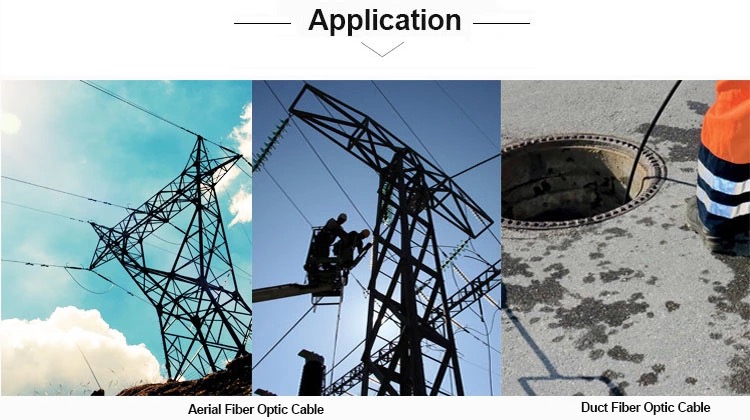

Used for core networks, city area networks and access networks. It's suitable for duct or aerial laying, especially for places with high moisture proof requirements.

8
