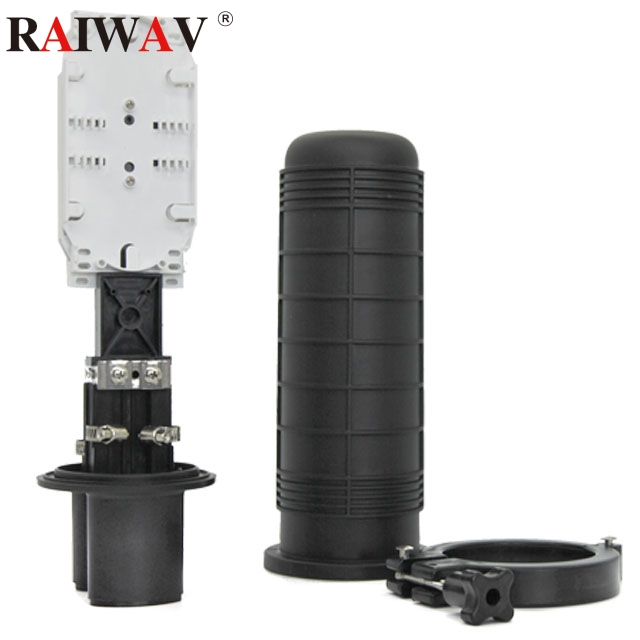

Dome Type Fiber Optic Splice Closure

The Dome fiber optic splice closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has two entrance ports on the end (two round ports and one oval port). The shell of the product is made from ABS. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by heat-shrinkable tube. The closures can be opened again after be sealed, reused again without changing the sealing material.

core:
Material:
Quantity:

Dome Type Fiber Optic Splice Closure



Features

Great mechanical performance

Great resisting aging performance

High airproof, dampproof and resisting,lightning strike performance

Can be place with the aerial cabal or buried in carth put in the pipeline


Specifcation

Dimension ( mm )

85 × 330

Weight ( Kg )

1.5

Round Port ( mm )

7-19

Cable Entry Ports

2 & 2

Max Capacity of Cores Per Splice Tray

6 ( Single ) / 12 ( Single )

Max Capacity of Splice Trays/ Closure

2

Max Capacity

12 ( Single ) / 24 ( Single )

Sealing Structure of Cable Entry Port

Heat-shrinkable Sealing Structure

Sealing Structure of Box

Silicon Gum Material
