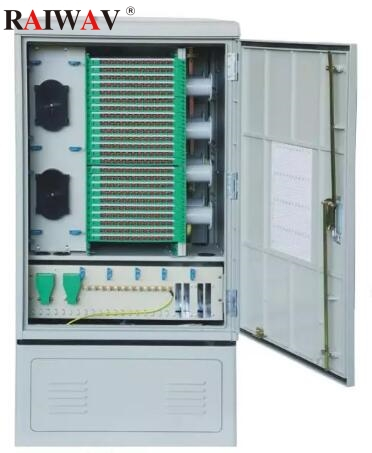

FTTH Outdoor/Indoor Street Fiber Optic Cross Connect Cabinet

ODFwith pigtails and adapters contain one ODF, adapters and pigtails. Parts are shipped separately, The installer assembles the pigtails and adapters in the ODF on site. Boxes can be supplied to contain from 12 to 192 fibers. All ODFs are withdrawable and designed for mounting in 19” racks. They are equipped with splice holders and guiding for fibers. We can also supply you with other combinations on request.

Quantity:

FTTH Outdoor/Indoor Street Fiber Optic Cross Connect Cabinet


Features

1)SMC material used ensures the body strong and light.

2)Embedded the wall design for outdoor uses

3)Protection Level: IP55

4)Easy installations: Ready for wall mount – installation kits provided

5)Adapter slots used – No screws and tools needed for installing adapters

6)Ready for splitters: designed space for adding splitters

7)Space saving! Double-layer design for easier installation and maintenances

8)MAX.tray:8 pcs(96 cores)

9)Lower layer for splitters and over length fiber storage

10)Upper layer for splicing, cross-connecting and fiber distribution

11)Accommodates both cable glands as well as tie-wraps

12)Lock provided for extra security



Application

1.Widely used in FTTH (Fiber To the Home) access network

2.Telecommunication Networks

3.CATV Networks

4.Data communications Networks

5.Local Area Networks

6.Suitable for Telekom UniFi


Specification

Product name96 Cores Fiber Distribution HubProtection gradeIP55
Operating Temperature -40℃~60℃Product Size450*840*280 mm
Working environmentOutdoorPacking quantity1 boxes per case
FunctionFTTX network buildingNet weight24 kg
Featureswet-proof,water-proofGross proudct26 kg
