Fiber Optic 1/2/4 Core Drop Cable

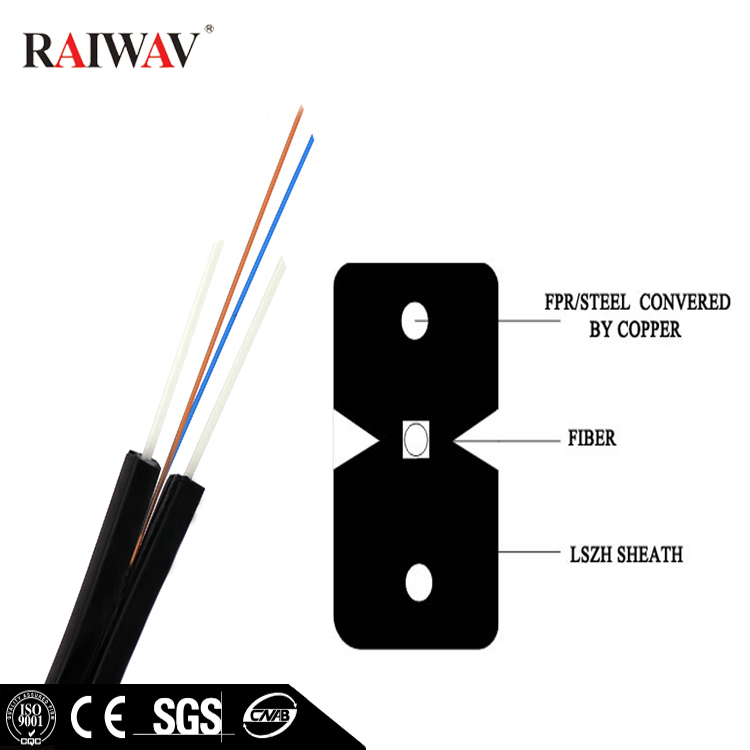

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.

core:
Fiber Type:
type:
Jacket:
Quantity:

Fiber Optic 1/2/4 Core Drop Cable


Applications:

1.Used in pigtails and patch cords

2.Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distrubution frames.

3.Used in indoor cabling, especially especially used for FTTH.


Specification

Fiber count

1F/2F/4F

Attenuation

1310nm:≤0.32           1550nm:≤0.2

Color Of  fiber

Blue Orange Green Brown

Fiber  Type

G652D/G657A1/G657A2

Strength member

Steel wire/FRP/KFRP

Outer sheath

LSZH Lower smoke zero halogen frame retardant & UV Anti

Cable Diameter dimensions

2.0( Height) × 3.0W ± 0.1 mm(width)

Operation temperature range

-20 ℃ to + 70 ℃

Installation temperature range

-0  ℃ to + 60 ℃

Transport and storage temperature range

-20 ℃ to + 70 ℃

Tension Load (N)

Short term :800N  Long term :500N

Crush Load(N)

Long term 1000 N/100mm  Short term:2200N/100mm

Minimal installation bending radius

30 x OD

Minimal operation bending radius

15 x OD

Cable marking

The marking length 1meter apart , as required
