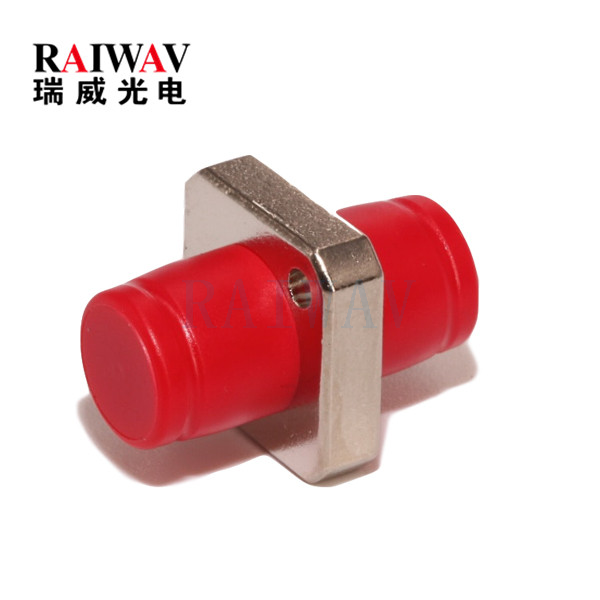

Fiber Optic Duplex MM FC Adapter

Fiber optic adapters join separated connectors. They are assembled in panels and allow connecting pigtails with patchcords. For every type of connector there is equivalent type of adapter.Generally there are 2 types of alignment sleeve within an adapter-phosphor bronze for multimode and ceramic for singlemode. the adapter is purely to support and lock the connectors together in the distribution box.

Quantity:

Fiber Optic Duplex MM FC Adapter


APPLICATION:

Telecommunication network

Test equipment


SPECIFICATION

SC  FIBER OPTIC ADAPTER

Parameter

Unit

Description

Insertion loss

dB

≤ 0.2

Return loss

dB

PC≥45 UPC≥50 APC≥60

Mechanical endurance(500T)

dB

≤ 0.2

Exchangeability

dB

≤ 0.2

Operating Temperature

°C

-40~+75

Storage Temperature

°C

-40~+85

Relative Humidity

%

95

Parameter

Unit

Optical Attenuator

Fixed

Variable

Operation wavelength

nm

1310/1550

1200~1600

Attenuation value

dB

+/- 0.5(≤10 dB)

0~3

+/-1.0 >10 dB)

Max. Optic input power

mW

500

500

Max. PDL

dB

≤0.1

≤0.1

Return loss

dB

UPC

>50


APC

<60
