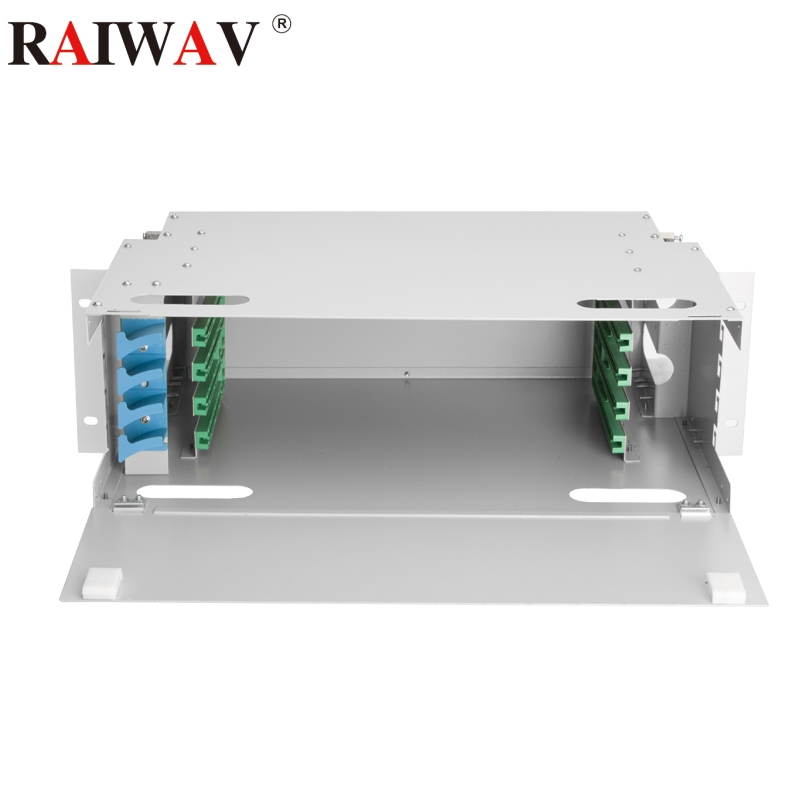

ODF 48 Port Fiber Optic Distribution Frame

An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fibre splicing, fibre termination, fibre optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fibre optic connections from damage.

Quantity:

ODF 48 Port Fiber Optic Distribution Frame


Features
1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C 96C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation

Application
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV



Specification

We support fiber capacity12/24/48/72/96/144 cores
Fiber PortFC, SC, ST and LC
Working temperature-10 °C ~ +40 °C
Storage temperature-25 ° C ~ +55 ° C
Relative humidity≤ 85% (+30 ° C)
Atmospheric pressure70Kpa~106Kpa
Nominal operating wavelength850nm, 1310nm, 1550nm
 Insertion loss ≤ 0.5dB
Return loss PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB
Electrical strength≥3KV(DC)/1min without breakdown
Insulation resistance ≥1000MΩ/500V (DC)
Life ≥1000 times
Application rangeSmall and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station
