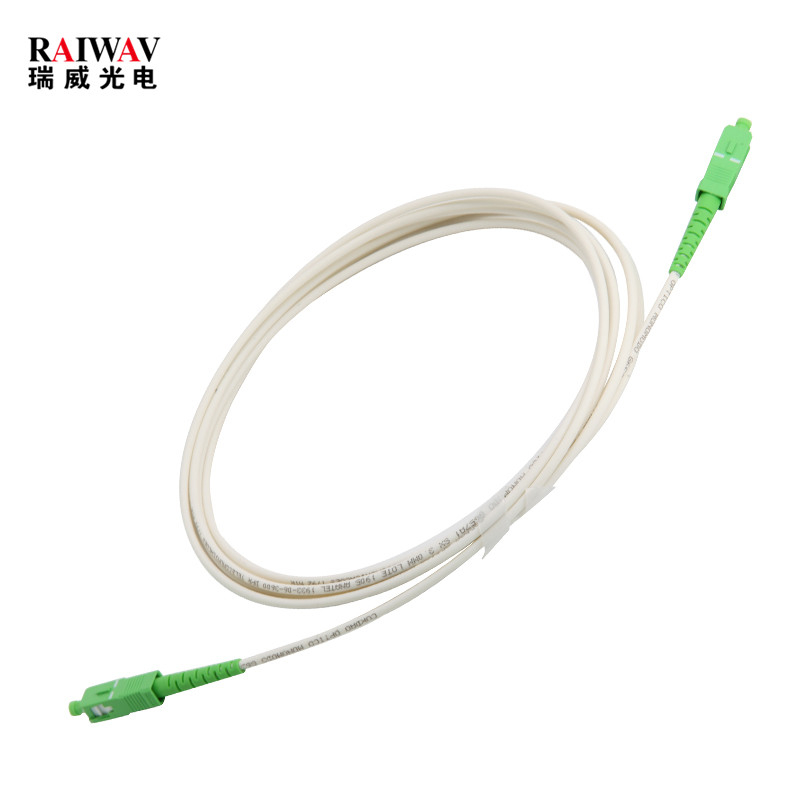

White Cable SC-SC Optical Fiber Patch Cord

Description:
The SC connector is becoming increasingly popular in single mode fiber optic telecom and analog CATV, field deployed links. The high precision, ceramic ferrule construction is optimal for aligning single9mode optical fibers. The connectors’ outer square profile combined with its push pull coupling mechanism, allow for greater connector packaging density in instruments and patch panels. The keyed outer body prevents rotational sensitivity and fiber endface damage. Multimode versions of this connector are also available. The typical insertion loss of the SC connector is around 0.3 dB.

Connector Type:
Jacket:
Ferrule end face:
Cable length:
Diameter:
Quantity:
  • RW-SC-SC Patch Cable B04
  • RAIWAV
  • RW-SC-SC-04

Quick Details:

Place of Origin:Jiangsu, China (Mainland)

Brand Name:RAIWAV

Model Number:RW-SC-SC Patch Cable

Mode:Single Mode

Connector Type: SC

Ferrule end face:PC/UPC/APC

Fiber counts:Simplex/Duplex

Jacket:PVC/LSZH

Cable length:1/1.5/3/5/10/20m or customized

Quality Standard:Telcordia's GR-326-Core or IEC

Flammability Grade:OFN/OFNR/OFNP

Certification:ISO9001/14001/OHSAS18001/TLC

Company Type:Factory


Performance

unit

FC, SC, LC

ST, MU

SM

MM

SM

MM

PC/UPC

APC

PC

PC/UPC

PC

Fiber Type


G652D、G657A

50/125、65.2/125

G652D、G657A

50/125、65.2/125

Insertion  loss

dB

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

Return  loss

dB

≥ 50

≥ 60

≥ 30

≥ 50

≥ 30

Wavelength

nm

1310, 1550

1300(OM1)850

1310, 1550

1300(OM1)850

Interchangeability

dB

≤ 0.2

≤ 0.2

operating temperature

-40~75

-40~75

Storage temperature

-45~85

-45~85
