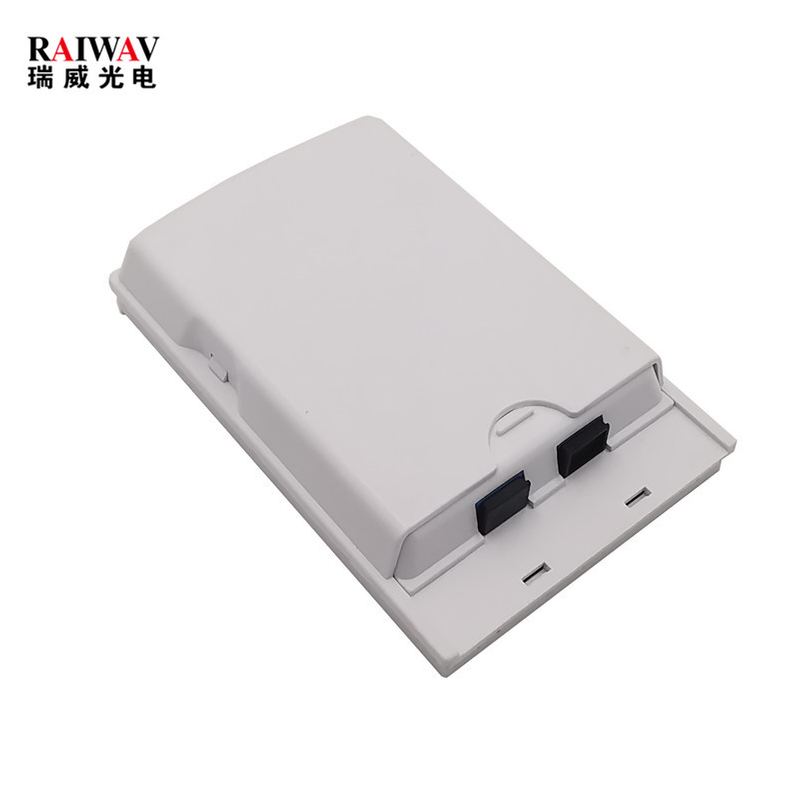

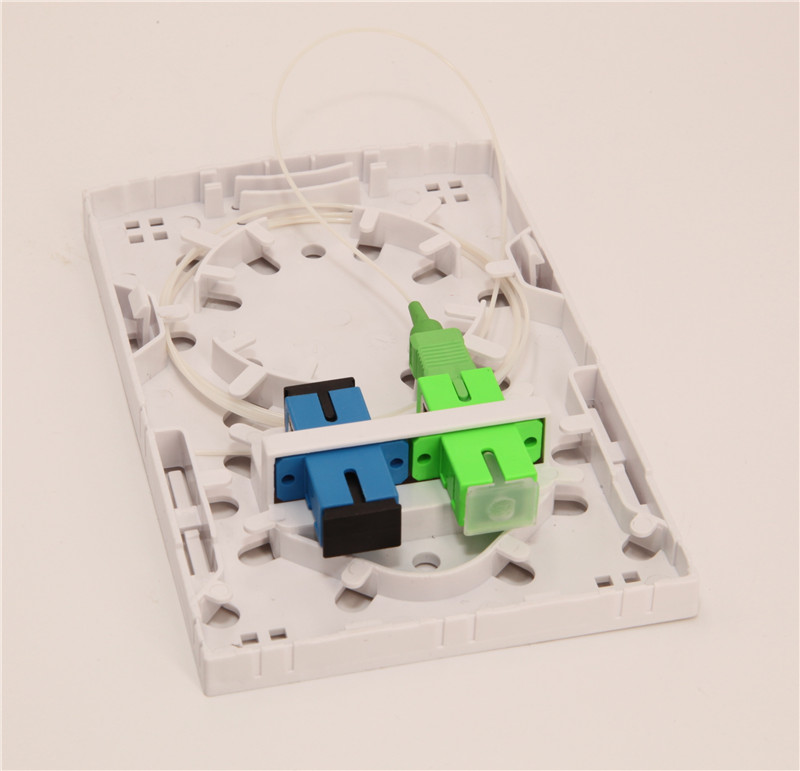

RAIWAV-WF-C
RAIWAV
RAIWAV-WF-C
FEATURES
·It is used for different kinds of modules and applied to the working area subsystem
·It uses embedded surface frame, easy to install and disassemble, it is with protective
door and dusty free, can do OEM for any customers and print requested LOGO
·With application of fiber SC/LC simplex, duplex and other different environment
installed plate or flush plate. All modules can be configured on customer’s choice
·Cable management can be connected without cutting(with express port)
·All modules are free of welding
APPLICATIONS
·The telecommunication network, metropolitan area network, optical fiber communication system
·Optical testing equipment/instrument
·CATV optical fiber, optical fiber sensor
·Optical fiber broadband access network, FTTH optical fiber
·Optical fiber distribution frame, frame type and wall type optical fiber distribution unit
SPECIFICATION | |
ITEM | VALUE |
Application | 3.0 x 2.0 mm drop cable or indoor cable |
Fiber diameter | 125μm ( 652 & 657) |
Tight cladding diameter | 250μm & 900μm |
Mode of application | Single mode & duplex mode |
Tensile strength | >50 N |
End-use temperature | -40~ 85℃ |
Adaptor | SC & LC |
Insertion loss | ≤0.2dB(1310nm & 1550nm) |
output | 2 |
Size(A×B×C ) | 132*88*32 mm |
Installation Size D |
|
