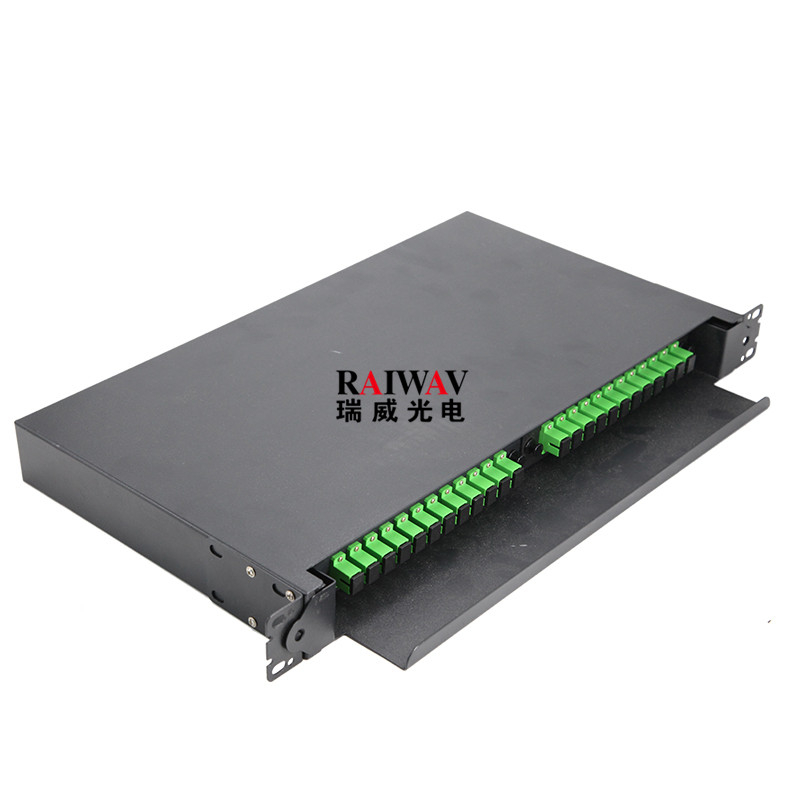

FTTH 12 24 48 Cores LC SC Optic Fiber Patch Panel

The equipment main function is to terminate the fiber optic cable and provide connection access to the cable's individual fibers. Rack mount panels is usually 19" or 23" universal width. The height of patch panel can be 1u, 2u, 3u, 4u, 6u, etc. The opening of the optical fiber patch panels can be slidable or fixed or revolving.

Material:
Dimension:
Installation Type:
Operation Type:
Quantity:
  • RWPP-LC/SC/FC
  • RAIWAV
  • RWPP-LC/SC/FC

Fiber Optic Patch Panel


Standard 19”.
Cold rolled steel sheet as raw material.
Versatile panel with extendable double slide rails for smooth sliding.
1RU installs 2pcs standard adapter plates at different types.
Front saddles pivot for improved patch cord routing and organization.
A comprehensive accessory kit for cable entry and fiber management.
Patch cord bend radius guides minimize macro-bending.
Different 175-adapter interface including ST, SC, FC, LC, etc.
Splice capability is up to Max. 48 fibers with splice trays loaded.
Full assembly (loaded) or empty panel.


Key Feature

Product Name
12/24/48/72/96/144 Cores Fiber Optic Patch Panel/SC/FC/ST/LC/19'' Rack Mount/Rotary Type/Drawer Type/Fixed Type/Dustproof Type
Material

Aluminum / Cold orifice

Color
Black Or Grey Or White

Size
44*482*300mm(H*W*D)       12/24 Cores
88*482*300mm(H*W*D)       48 Cores
132*482*300mm(H*W*D)     72/96Cores
176*482*300mm(H*W*D)     144 Cores
