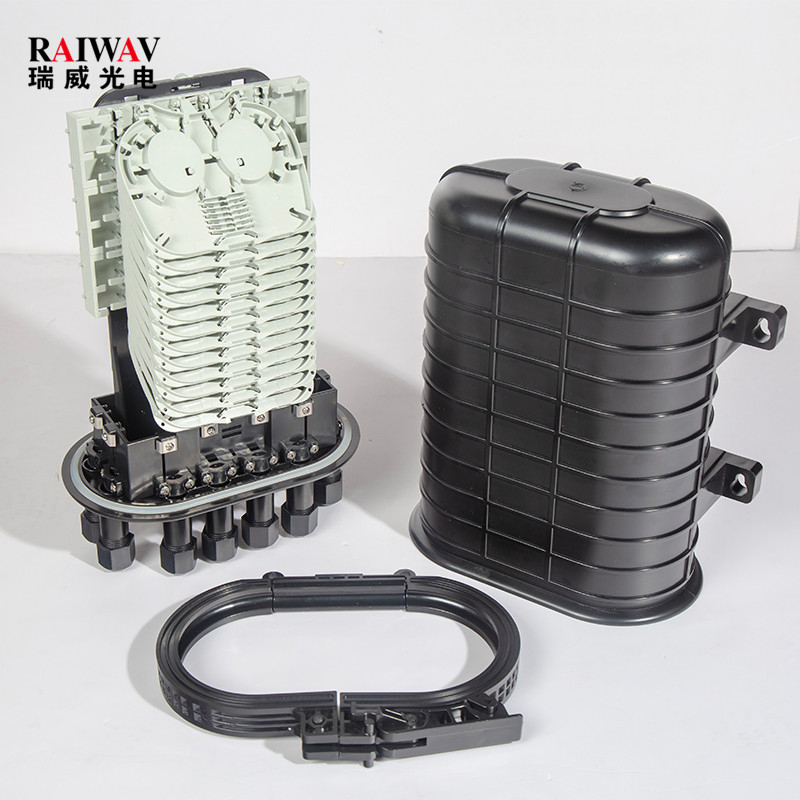

144 Cores Fiber Cable Joint Enclosure Splice Closure

GJS-SDM joint closure is device which providing optical, sealing and mechanical strength continuity between adjacent optical cables. It is suitable for overhead, pipeline and underground manhole of optical cable. The main body of the joint box is made of high quality engineering plastics, the material of fasteners is rust-proof, and the sealing parts are made of high quality silicone rubber, which can be opened repeatedly.

Core number:
Port:
Material:
Protection Standard:
Installation Type:
Quantity:
  • RW-GJS-SDM
  • RAIWAV
  • RW-GJS-SDM-144c

GJS-SDM joint closure is  device which providing optical, sealing and mechanical strength continuity between adjacent optical cables. It is suitable for overhead, pipeline and underground manhole of optical cable. The main body of the joint box is made of high quality engineering plastics, the material of fasteners is rust-proof, and the sealing parts are made of high quality silicone rubber, which can be opened repeatedly.


Key Features:

• Up-down bisection, horizontal type
• 10  inlet/outlet
• 144  cores max capacity
• Slide-in-lock design, over 90 opening angle tray
• Elastic integrated seal ensure tightening fit
• Housing provide fire resistant, waterproof, and quakeproof for splices while handing

• Operating Temperature: -40 ~ +65 °C



Application :

1. Sutable for bunchy fibers

2. Aerial ,wall-mounting

3. FTTH optical fiber distribution



Product Specification:

Product NameFiber optic splice closure
Colorblack
Coresbunchy 60cores,ribbon 96-144cores
Protection class IP55/IP65/IP68
SealsMechanical seal
MaterialABS/PC
Cable out of the tube configurationUp to four out of the tube fiber optic cable
Ports diameter(mm)12~22mm
Fiber radius of curvature(mm)30
Dielectric strength(kv)1.5
Ambient temperature(°C)-40~+60
Atmospheric pressure(Kpa)70~1106
Tensile strength(N)>1000
Anti-stress>2000N/ 10cm2 Stress,Time 1min
Insulation Resistance>2X10MΩ/500V(DC)
Compressive strength15KV(DC)/1min. No breakdown.No flashover
Housing dimensions(mm)380*280*195mm(L*W*H)
Splice TrayMax 12 pcs, 12 cores each
ScopePole, buried, manholes, wall
Packing0.075m³/8pcs
Total weight1.46kg/1pcs
