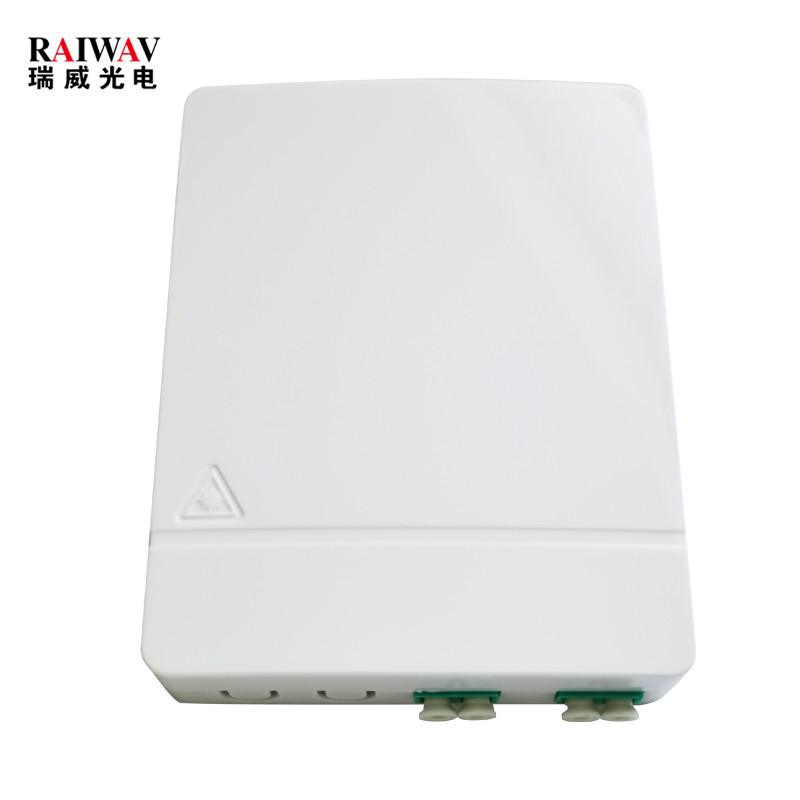

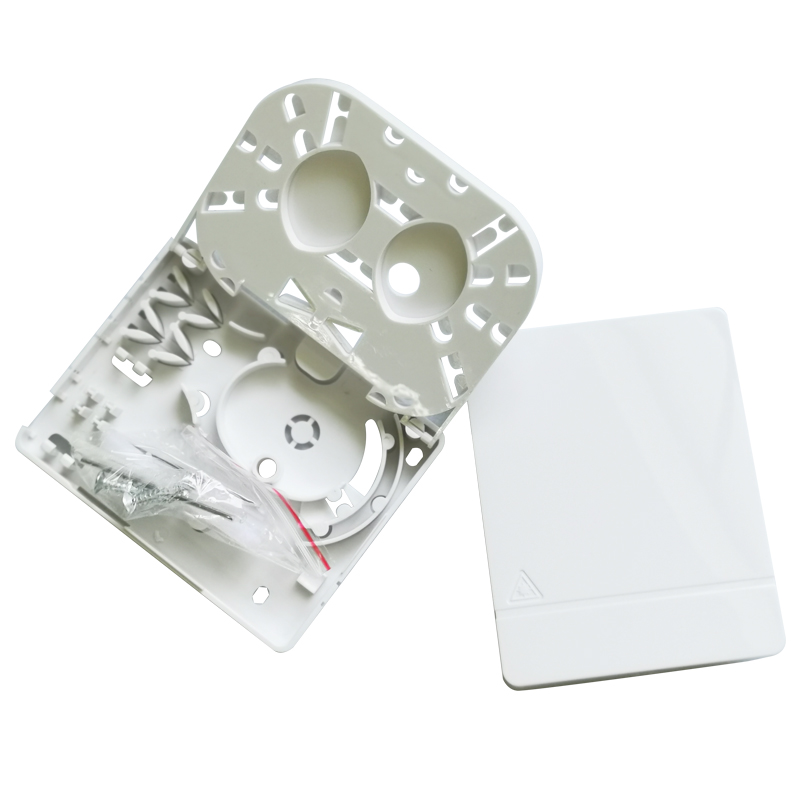

Dual Port 2 Output Fiber Optic Wall Mounted FTTH Faceplate

·It is used for different kinds of modules and applied to the working area subsystem
·It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO
·With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer’s choice
·All modules are free of welding

OUT PUT:
Connector Type:
Quantity:
  • RAIWAV-WF-001
  • RAIWAV
  • RAIWAV-WF-001

FEATURES
·It is used for different kinds of modules and applied to the working area subsystem
·It uses embedded surface frame, easy to install and disassemble, it is with protective
door and dusty free, can do OEM for any customers and print requested LOGO
·With application of fiber SC/LC simplex, duplex and other different environment
installed plate or flush plate. All modules can be configured on customer’s choice
·Cable management can be connected without cutting(with express port)
·All modules are free of welding

APPLICATIONS
·The telecommunication network, metropolitan area network, optical fiber communication system
·Optical testing equipment/instrument
·CATV optical fiber, optical fiber sensor
·Optical fiber broadband access network, FTTH optical fiber
·Optical fiber distribution frame, frame type and wall type optical fiber distribution unit

SPECIFICATION

ITEM

VALUE

Application

3.0 x 2.0 mm drop cable or indoor cable

Fiber diameter

125μm ( 652 & 657)

Tight cladding diameter

250μm & 900μm

Mode of application

Single mode & duplex mode

Tensile strength

>50 N

End-use temperature

-40~ 85℃

Adaptor

SC & LC

Insertion loss

≤0.2dB(1310nm & 1550nm)

output

2

Size(A×B×C )

83.4*130*24.1 mm

Installation Size D

85mm
