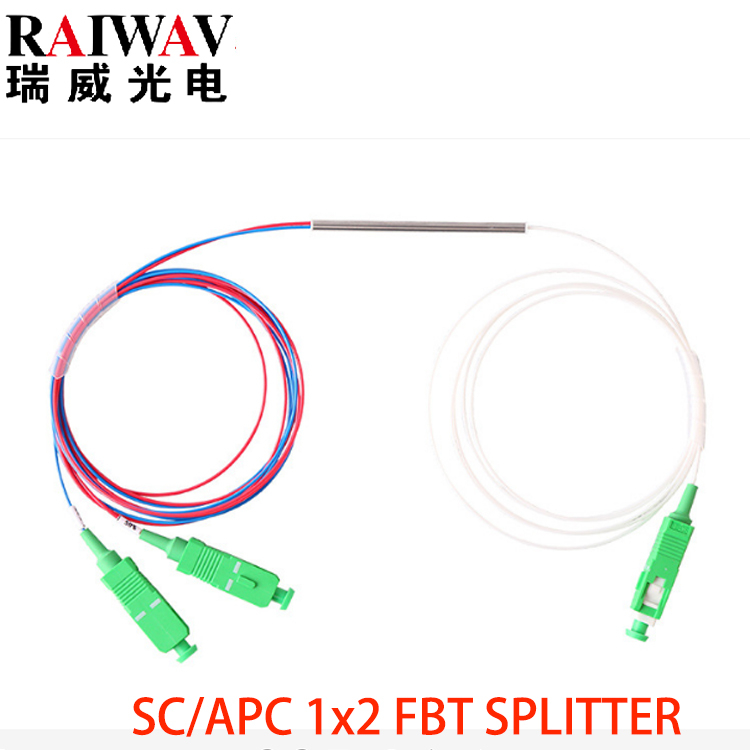

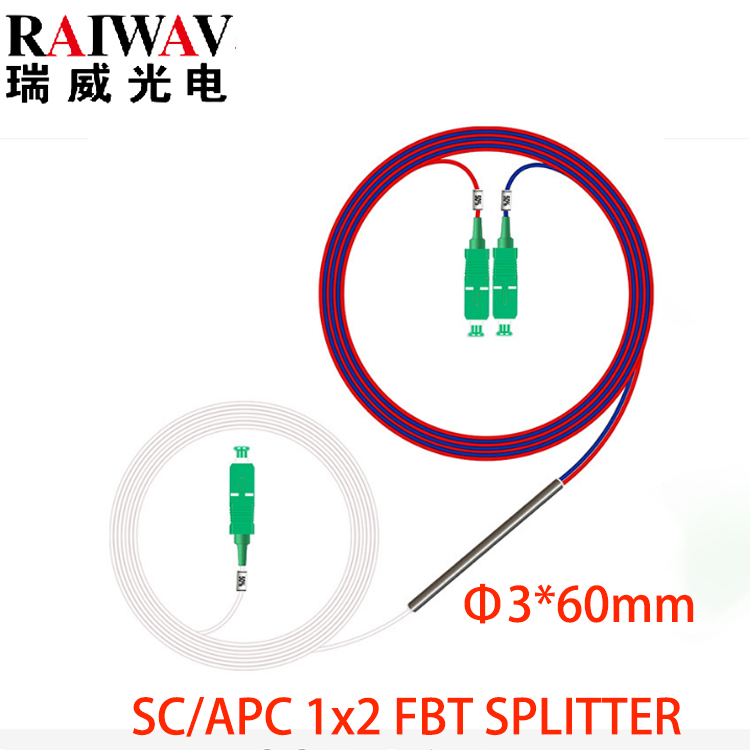

FTTH FTTX sx core Splitter FBT 1X2 fiber coupler Split Ratio 50/50 95/5 single window 1310nm, 0.9mm Steel tube type

FTTH FTTX sx core Splitter FBT 1X2 fiber coupler Split Ratio 50/50 95/5 single window 1310nm, 0.9mm Steel tube type
Quantity:
  • SC/APC
  • RAIWAV

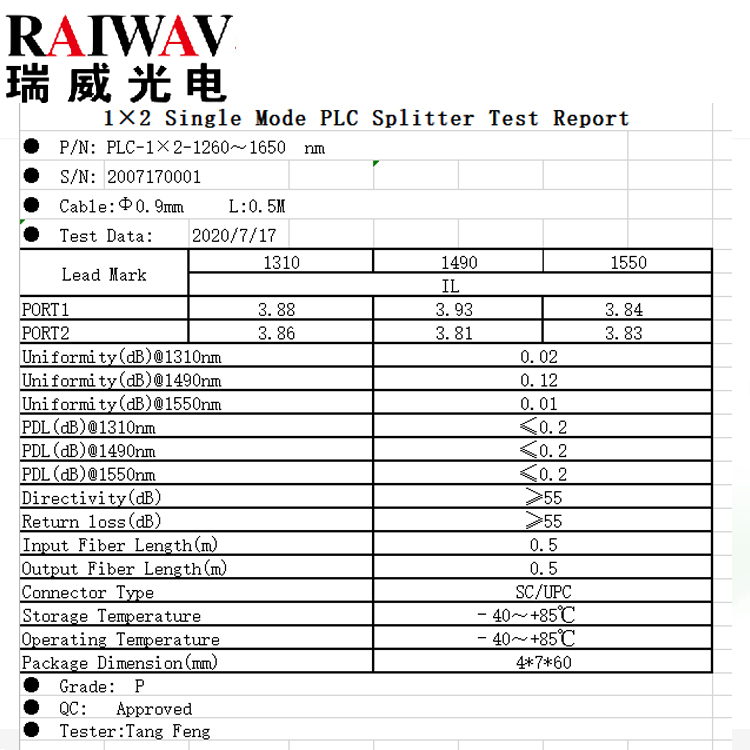

1×2 Single Mode PLC Splitter Test Report
●  P/N: PLC-1×2-1260~1650  nm
●  S/N:2007170001




●  Cable:Ф0.9mm     L:0.5M
●  Test Data:
2020/7/17




Lead Mark131014901550
IL
PORT13.88 3.93 3.84
PORT23.86 3.81 3.83
Uniformity(dB)@1310nm0.02
Uniformity(dB)@1490nm0.12
Uniformity(dB)@1550nm0.01
PDL(dB)@1310nm≤0.2
PDL(dB)@1490nm≤0.2
PDL(dB)@1550nm≤0.2
Directivity(dB)≥55
Return loss(dB)≥55
Input Fiber Length(m)0.5
Output Fiber Length(m)0.5
Connector TypeSC/UPC
Storage Temperature﹣40~+85℃
Operating Temperature﹣40~+85℃
Package Dimension(mm)4*7*60
●  Grade:  P
●  QC:   Approved
●  Tester:Tang Feng
