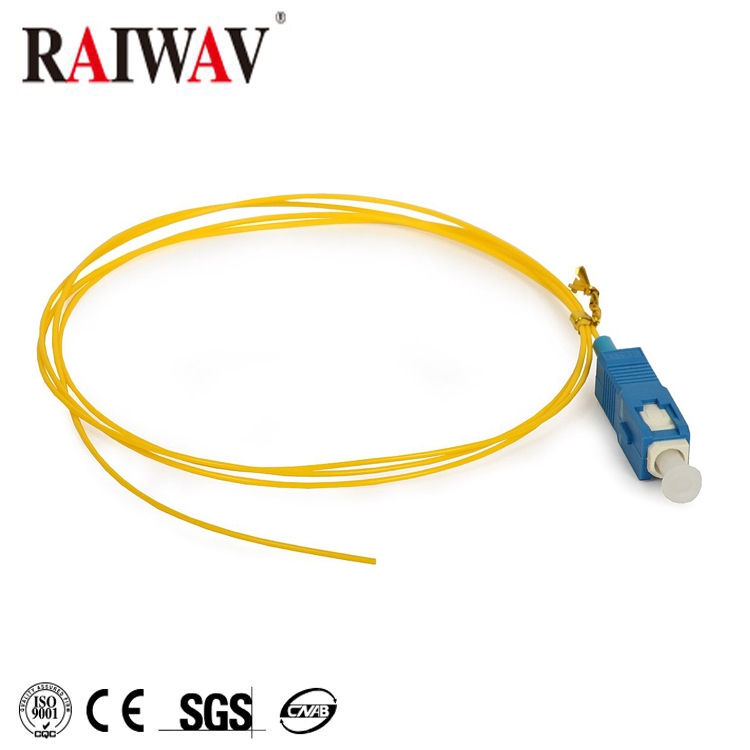

Fiber Optic Single Mode SC Pigtail

Pigtails are used for splice applications when terminating outside plant cable. Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.

legth:
type:
Cable Diameter:
Jacket:
Quantity:

Fiber Optic Single Mode SC Pigtail

Application

1.Long Distance Optical Communication System

2.FTTX

3.Telecommunication Network

4.CATV Network

5.Local Area Network

6.Active device termination

7.Data system network


Optical Pigtail Ordering options

1. Connector type: FC, SC, LC, ST
2. Ferrule End-face: UPC, APC, PC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: Simplex, Duplex
5. Cable Diameter: 3.0mm,2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized

7. Cable type: PVC, LSZH


Specification

Mode

SM

MM

Polish

UPC

APC

PC

Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB

Return Loss

≥50dB

≥65dB

≥35dB

Interchangeability

≤0.2dB

Repeatability

≤0.1dB

Durability

≤0.2dB (1000 times mating)

Tensile Strength

> 10kg

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB (+25+65 93 R.H.100 hours)
