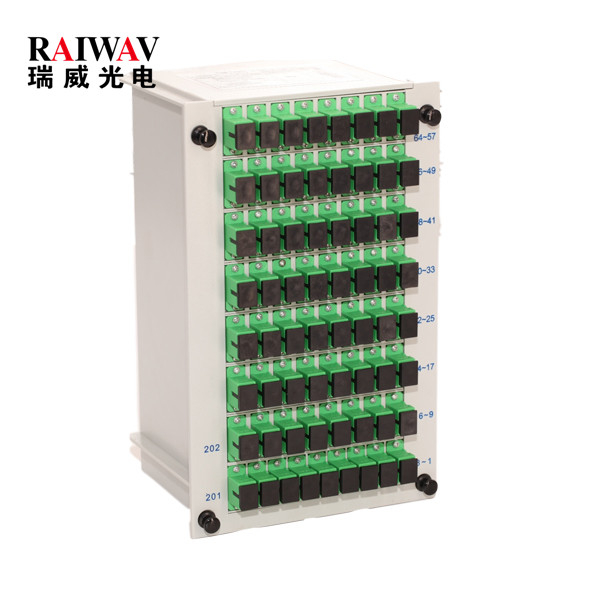

LGX Box 1x64 Splitter

RAIWAV PLC Splitters offer excellent performances over wide wavelength range (1260~1620nm) at a temperature range of -40~+85C. They feature low insertion loss and PDL, high return loss and directivity, and very good uniformity. Applications include FTTx systems, PON and CATV networks.

Model Number:
IN PUT:
Cable Diameter:
Ferrule end face:
Connector Type:
Quantity:
  • RW-LGX-1X64
  • RAIWAV
  • RW-LGX-64S

Characteristic of PLC Splitter

1. Fiber To The Home (FTTH)

2. Local Loop Passive Optical Networks (PON)

3. Fiber Optic CATV Fiber Communication Systems

4. Fiber Optic Test Equipment

5. Fiber Optic Sensing

6. Local Area Networks (LAN)



Feature

1. Low return loss

2. Low PDL

3. High directivity

4. Good uniformity



Parameter of PLC Splitter

Parameter

Specification

Operating Wavelength (nm)

1260 ~ 1650

Type

1x4

1x8

1x16

2x4

2x8

2x16

1x32

2x32

1x64

Insertion Loss (dB) Max. *

<7.3

<10.8

<13.8

<7.6

<11.2

<14.5

<17.2

<18.2

<20.5

Uniformity (dB) Max.*

<0.8

<1.0

<1.5

<1.0

<1.5

<2.0

<2.0

<2.5

<2.5

PDL(dB)Max.*

<0.2

<0.2

<0.3

<0.3

<0.3

<0.4

<0.3

<0.4

<0.3

Directivity (dB) Min *

55

Return Loss (dB) Min *

55(50)

Operating Temperature (°C)

-5~ +75

Storage Temperature (°C)

-40 ~ +85

Fiber length

1m or custom length

Fiber Type

Corning SMF-28e fiber

Connector Type

Custom specified
