| Model Number: | |
|---|---|
| Cable length: | |
| Cable Diameter: | |
| Ferrule end face: | |
| Connector Type: | |
| Quantity: | |

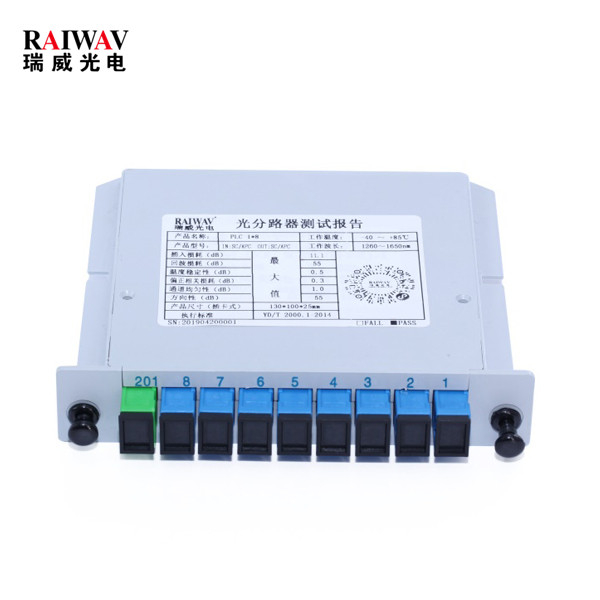

RW-LGX-1X8
RAIWAV
RW-LGX-8S
Characteristic of PLC Splitter
1. Fiber To The Home (FTTH)
2. Local Loop Passive Optical Networks (PON)
3. Fiber Optic CATV Fiber Communication Systems
4. Fiber Optic Test Equipment
5. Fiber Optic Sensing
6. Local Area Networks (LAN)
Feature
1. Low return loss
2. Low PDL
3. High directivity
4. Good uniformity
Parameter of PLC Splitter
Parameter | Specification | ||||||||
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
Insertion Loss (dB) Max. * | <7.3 | <10.8 | <13.8 | <7.6 | <11.2 | <14.5 | <17.2 | <18.2 | <20.5 |
Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
Directivity (dB) Min * | 55 | ||||||||
Return Loss (dB) Min * | 55(50) | ||||||||
Operating Temperature (°C) | -5~ +75 | ||||||||
Storage Temperature (°C) | -40 ~ +85 | ||||||||
Fiber length | 1m or custom length | ||||||||
Fiber Type | Corning SMF-28e fiber | ||||||||
Connector Type | Custom specified | ||||||||
Characteristic of PLC Splitter
1. Fiber To The Home (FTTH)
2. Local Loop Passive Optical Networks (PON)
3. Fiber Optic CATV Fiber Communication Systems
4. Fiber Optic Test Equipment
5. Fiber Optic Sensing
6. Local Area Networks (LAN)
Feature
1. Low return loss
2. Low PDL
3. High directivity
4. Good uniformity
Parameter of PLC Splitter
Parameter | Specification | ||||||||
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
Insertion Loss (dB) Max. * | <7.3 | <10.8 | <13.8 | <7.6 | <11.2 | <14.5 | <17.2 | <18.2 | <20.5 |
Uniformity (dB) Max.* | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
PDL(dB)Max.* | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
Directivity (dB) Min * | 55 | ||||||||
Return Loss (dB) Min * | 55(50) | ||||||||
Operating Temperature (°C) | -5~ +75 | ||||||||
Storage Temperature (°C) | -40 ~ +85 | ||||||||
Fiber length | 1m or custom length | ||||||||
Fiber Type | Corning SMF-28e fiber | ||||||||
Connector Type | Custom specified | ||||||||
