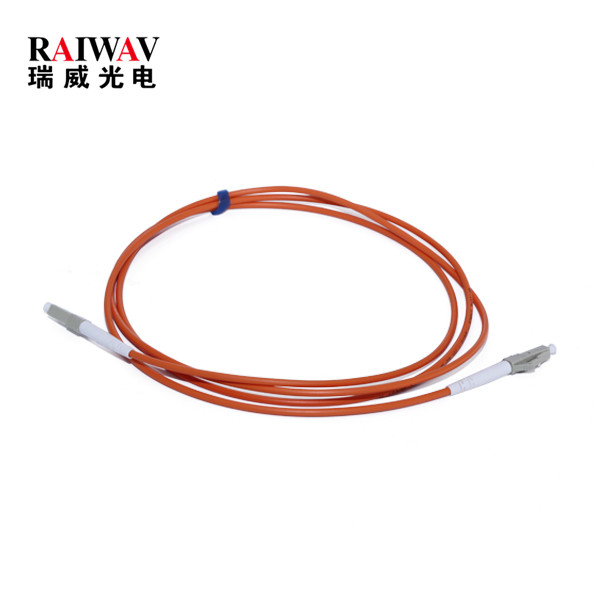

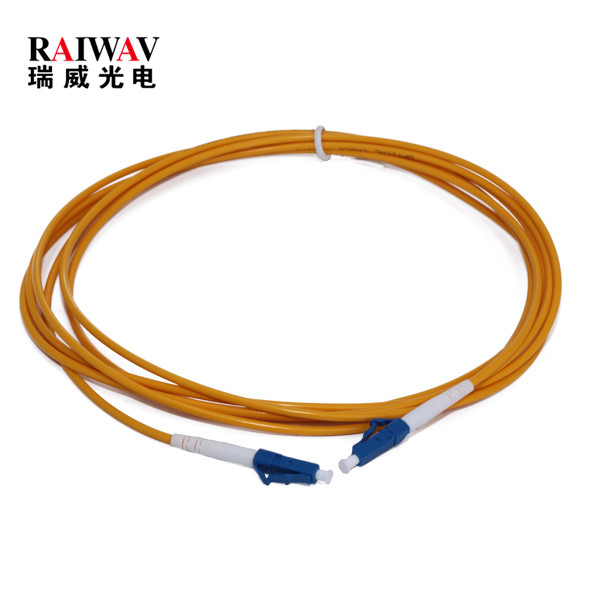

5m MM LC APC Fiber Optic Patch Cord

5m MM LC Apc Fiber Optic Patch Cord
Connector:LC/Simplex ,LC/Duplex
Cable:OM1,OM2,OM3,OM4

length:
Fiber Type:
Jacket:
Diameter:
Quantity:
  • LC/APC-LC/APC-5M
  • RAIWAV
  • LC-5M-APC

5m MM LC Apc Fiber Optic Patch Cord


Application:

1.Access Network

2.Telecom/CATV Systems

3.FTTX

 1557227834(1)

Specifications


Parameters

Standard Fiber Cable Assemblies

Fiber Type

SM(G.652/G.657A)

MM(OM1/OM2/OM3/OM4/OM5)

Jacket Materials

LSZH/OFNR/PVC

Connector Type

SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000

Ferrule Materials

Ceramic

Testing Wavelengths

1310±30/1550±30nm

850±30/1300±30nm

Insertion Losss(dB)

≤ 0.25dB(PC/UPC/APC)

≤ 0.3dB(PC/UPC)

Return Loss(dB)

≥50dB(PC/UPC)
≥60dB(APC)

≥40dB(PC/UPC)

Exchangeability

≤ 0.2dB

Cable Assemblies

Pigtail/Simplex/Duplex/Fan-out Patchcord


Overview

photobank (26)

MM LC pigtail2MM LCUPC pigtail2MM LCUPC pigtial

Packing:

PP bag with carton
