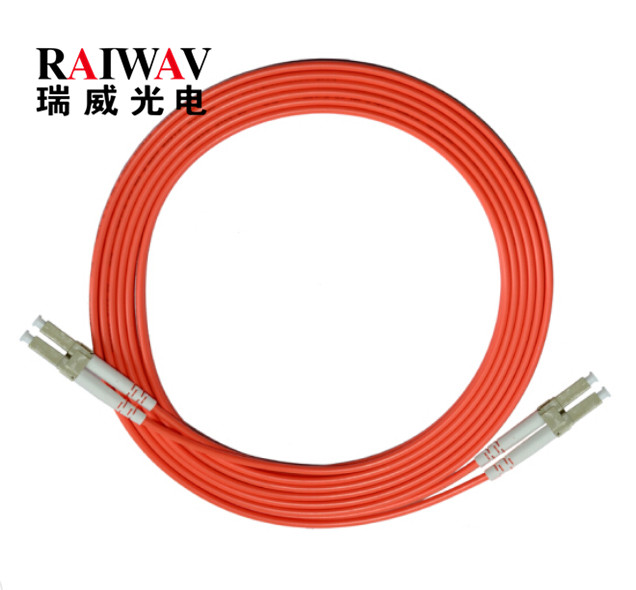

LC uniboot patch cord

The switchable uniboot cable is a unique design that allows to switch polarity without using any tools. It is commonly used in data centers where cable counts are high and space is limited.
The housing of the LC Duplex Switchable Uniboot Connector can be taken apart In the field without the use of any special tooling. This duplex LC allows the fiber polarity to be switched at the time of cable assembly Installation without having to re-terminate the connectors.
cable type:
Jacket:
Diameter:
Availability:
Quantity:
sharethis sharing button
  • RW- LC uniboot patch cord

  • RAIWAV

  • RW-LC-LC-MMD-01

Quick Details:
Place of Origin:Jiangsu, China (Mainland)

Brand Name:RAIWAV

Model Number: LC uniboot patch cord

Mode:Single Mode

Connector A:MPO Male/Female 8/12/24 core

Connector B:LC Uniboot

Ferrule end face:PC/UPC/APC

Fiber counts:Simplex/Duplex

Jacket:PVC/LSZH

Cable length:1/1.5/3/5/10/20m or customized

Certification:ISO9001/14001/OHSAS18001/TLC

Company Type:Factory

Performance

unit

FC, SC, LC

ST, MU

SM

MM

SM

MM

PC/UPC

APC

PC

PC/UPC

PC

Fiber Type


G652D、G657A

50/125、65.2/125

G652D、G657A

50/125、65.2/125

Insertion  loss

dB

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

≤ 0.3

Return  loss

dB

≥ 50

≥ 60

≥ 30

≥ 50

≥ 30

Wavelength

nm

1310, 1550

1300(OM1)850

1310, 1550

1300(OM1)850

Interchangeability

dB

≤ 0.2

≤ 0.2

operating temperature

-40~75

-40~75

Storage temperature

-45~85

-45~85
